A2-Rated & Third-Party Certified / MCM Flexible Stone Panels — 3–7mmLightweight High Performance

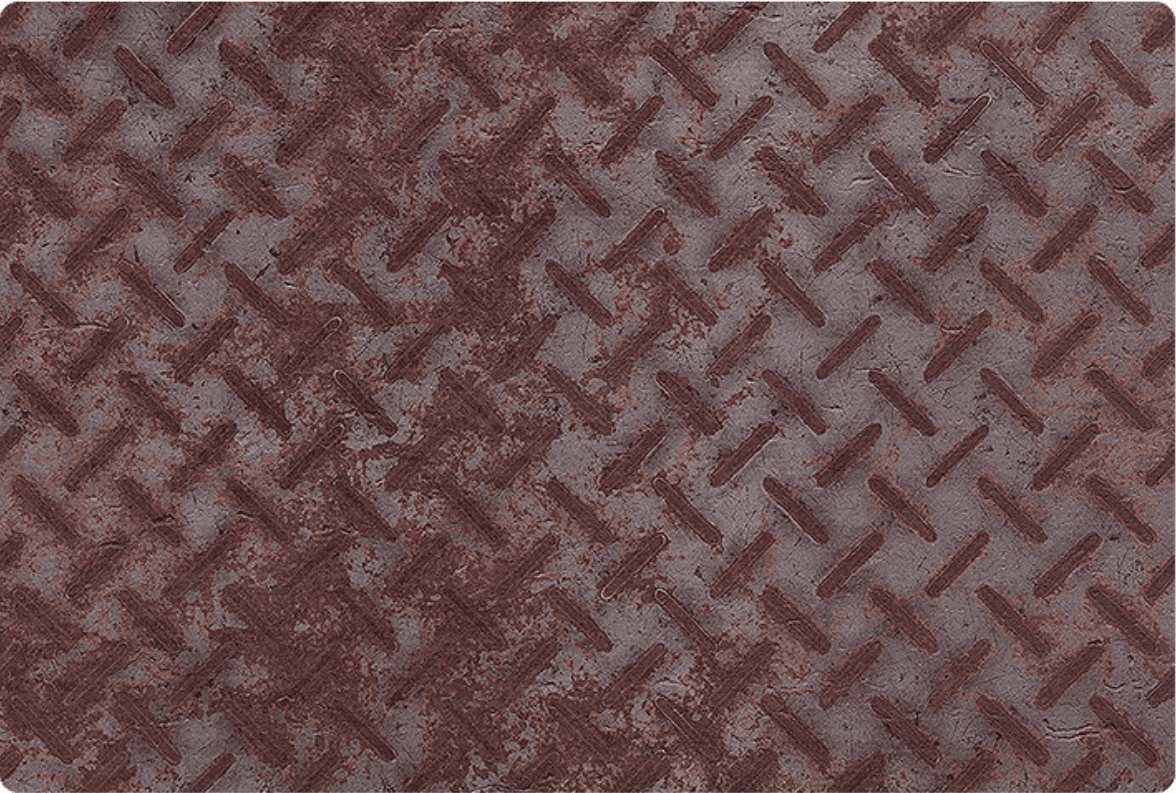

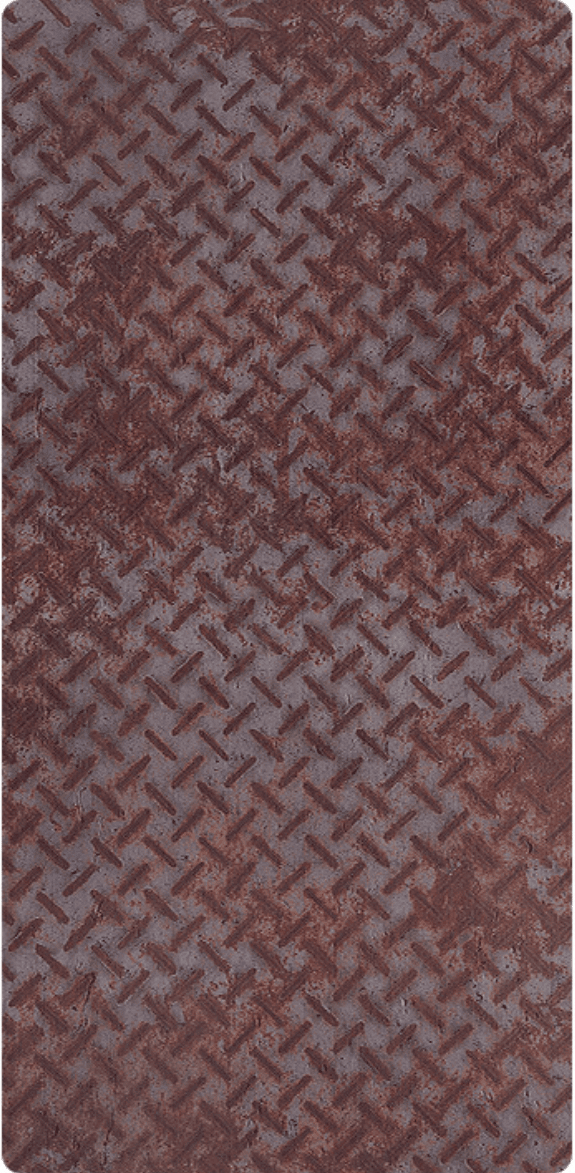

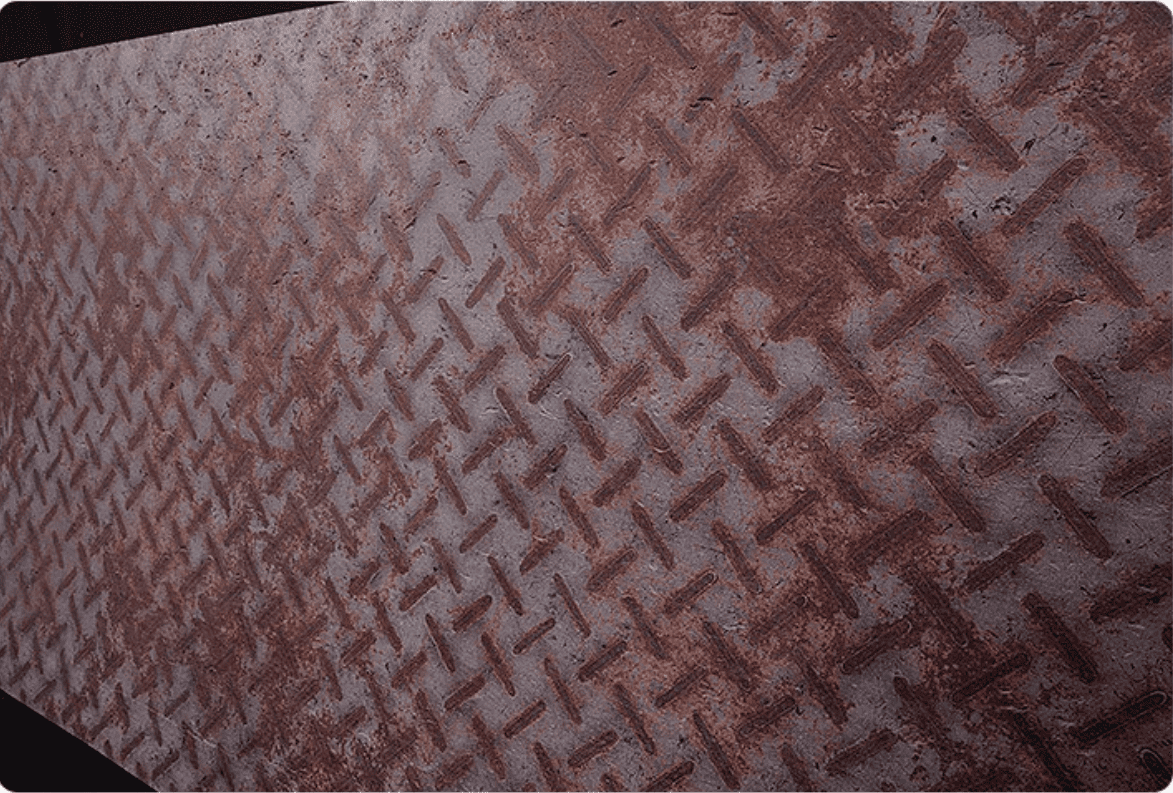

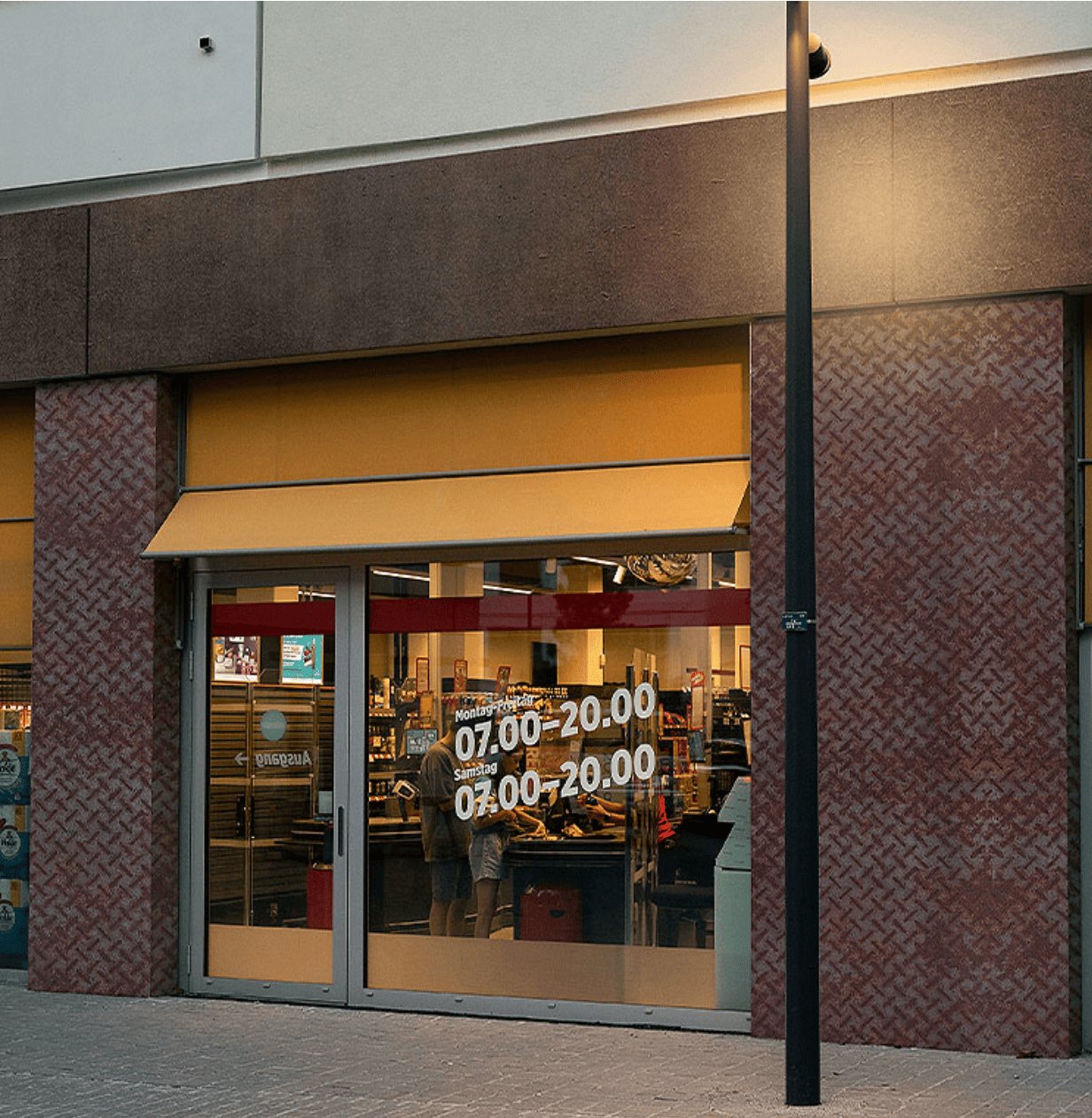

This lightweight mineral cladding panel replicates the distinct raised-hatch pattern and weathered rust texture of industrial diamond plate. Engineered for flexible application, it conforms to curved columns, complex contours, and interior or exterior building facades. It provides a tactile, industrial metallic aesthetic without the structural weight, cutting difficulty, or corrosion run-off of traditional iron sheeting.
ⓘ Check the basic product specifications below. To view complete third-party certifications and test reports, please request our certification documents .
ⓘ Color Disclaimer: Actual colors may vary from screen display due to monitor settings and lighting conditions. We recommend requesting a physical sample before placing a bulk order.
| Parameter | Details |
|---|---|
| Product Code | WP-5007-5 |
| Series Name | Heavy Industrial Corten Steel Grid |
| Panel Size & Weight | 600 mm × 1200 mm ·3 kg per panel·4.17 kg/m² 1200 mm × 2400 mm ·11 kg per panel·3.82 kg/m² 1200 mm × 3000 mm·17 kg per panel·4.72 kg/m² |
| Thickness |
600 mm × 1200 mm / 1200 mm × 2400 mm:2.3–2.8 mm 1200 mm × 3000 mm :3.5–4.0 mm |
| Reaction to Fire | Class A2-s1, d0 (EN 13501-1) |
Product Application & Physical Properties
Fire Performance – EN 13501-1:2018
A2 = Limited combustibility · s1 = Very low smoke production · d0 = No flaming droplets or particles
